201-35 Particle size analyzer and Fisher sub sieve sizer
201-35 Particle size analyzer and Fisher sub sieve sizer
Particle size analyzer is a general term for the instruments which can measure particle size. Particle size analyzer includes many measuring principle. Average particle size analyzer is one of them. It is an instrument that measures the average particle size of powder particles. The average particle size analyzer only has one measuring principle. That is HMK-22 fisher sub sieve sizer Air permeability Method, also called Fisher Method.
SPECIFICATIONS
Voltage Requirement: 220V/115V (+ or -10%), 50-60 Hz
Power Requirement: 0.3 amps (30 Watts)
Range
– Average Particle Diameter: 0.2 to 50 microns (um) – Porosity: 0.25-0.40/0.40-0.80/0.80-0.95
Repeatability:<3%
Accuracy: <3%
Test Method: Air permeability method for determining surface area
Shipping Weight: 18 kg (38 lb.)
Instrument Dimensions: 41.8cm W x 24.6cm D x 73.7cm H
How to Use an HMK-22 Fisher Sub Sieve Sizer Sample Pressure Calibrator?

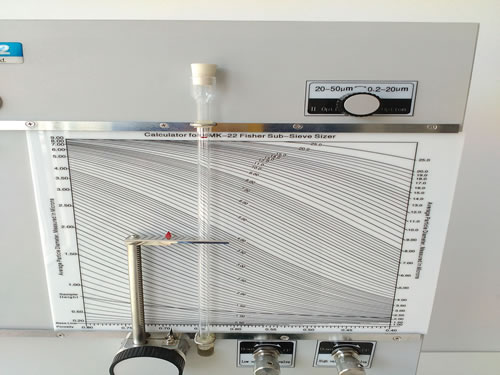

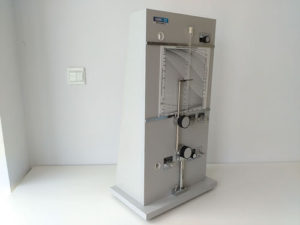

HMK-22 Fisher sub sieve sizer
