Fisher Scientific Sub-Sieve Sizer 201-5

Fisher Scientific Sub-Sieve Sizer determines particle size using air-permeability principle. It is used for  ASTM Method B 330 and ISO 10070 for refractory metals and compounds. HMK-22 Fisher sub sieve sizer conforms to both above mentioned international standards and have many users around the world.

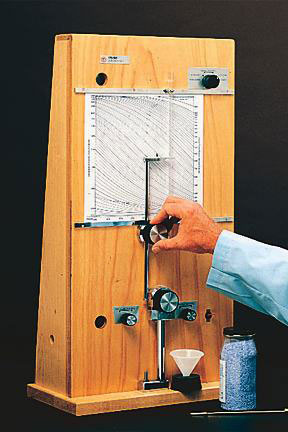

An original fisher scientific sub sieve sizer

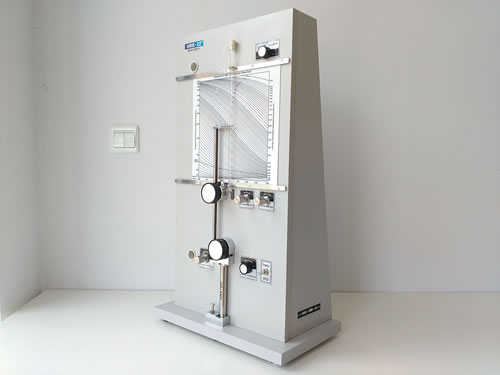

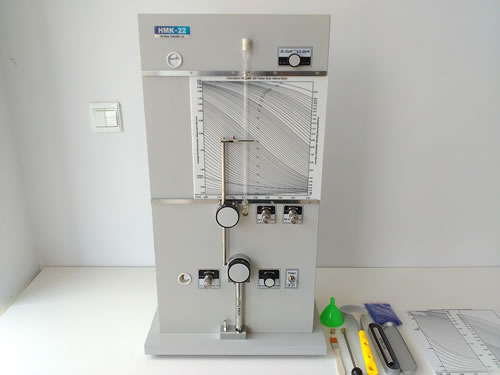

An HMK-22 Fisher Sub-sieve Sizer

You may be interested in

---

Manual: How to use a fisher sub sieve sizer?

Purchase: Where to buy a fisher sub sieve sizer?

Research: How a fisher sub sieve sizer works?

---

Includes: Sample Pressure Calibrator, air pump, pressure regulator, double-range flowmeter, calculator chart, precision-bore brass sample tube, two porous plugs, plug manipulator, plastic 2 oz. (60mL) funnel, sample tube support, drying agent, 3/4 in. diameter (19mm) paper discs and operating instructions.

• Measures average particle size in the 0.2 to 50µm range

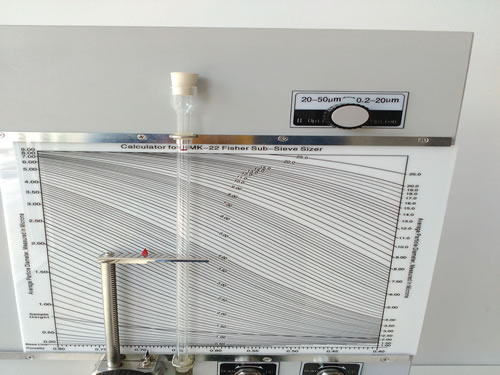

• Liquid level of flowmeter-manometer corresponds directly to particle size; read result directly from multi-curve chart after simple alignment of indices
• Systematic reduction of variables has greatly enhanced the accuracy and simplicity of the method
• Sample Pressure Calibrator 14-311-2 (included) helps achieve reproducible sample compaction and compliance with ASTM B 330-88

• Measures average particle size in the 0.2 to 50µm range
• Liquid level of flowmeter-manometer corresponds directly to particle size; read result directly from multi-curve chart after simple alignment of indices
• Systematic reduction of variables has greatly enhanced the accuracy and simplicity of the method
• Sample Pressure Calibrator 14-311-2 (included) helps achieve reproducible sample compaction and compliance with ASTM B 330-88

Standardization is simplified with optional 14-313-7 jewel orifice Sub-Sieve Sizer Calibrator (order separately).

Dimensions: 9L x 16W x 29 in.H (23 x 41 x 74cm). Weight: 34 lb. (15kg). For 115V 50/60Hz, 0.5A.

Unfortunately Fisher Scientific has discontinued above mentioned fisher sub sieve sizer.

HMK Test is now only world leading manufacturer of same fisher sub sieve sizers as Fisher Scientific.

Please contact us for more details mentioning CAT. No.020198

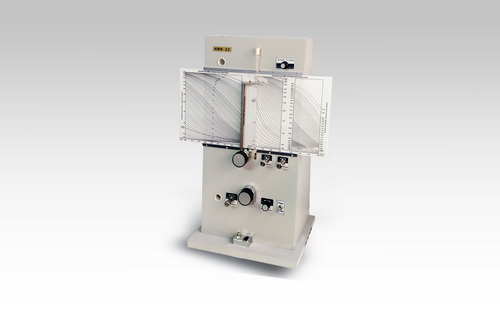

HMK-22 Fisher sub sieve sizer
