HMKDivider 2001 Rotary Sample Divider

Rotary Sample Divider/Sample Splitter/Spinning Riffler

Rotary sample divider is a type of sample spinner or sample divider. HMKDivider 2001 Rotary Sample Divider uses frequency controlled rotary motor and vibration-controlled device to optimize the sample dividing. It is much more superior to the traditional manual splitter and has been widely used in lab powder analysis applications especially with particle size analyzers. It has become the most frequently used representative sampling in many industries.

HMKDivider 2001 rotary sample divider is a sample splitting instrument before further analysis of dry powder in the laboratory. This instrument can automatically, quickly and effectively divide the samples to be analyzed into 6 or 8 equal shares; each share has the representation of the original sample.

Pictures

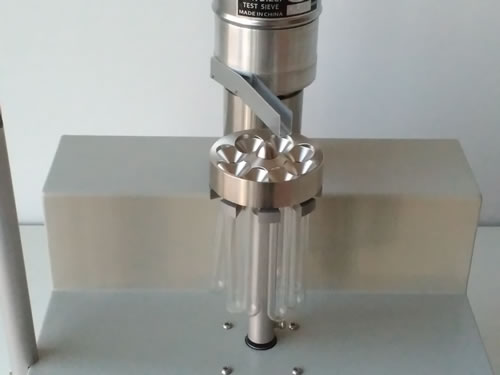

2017-09-08 laboratory sample splitter

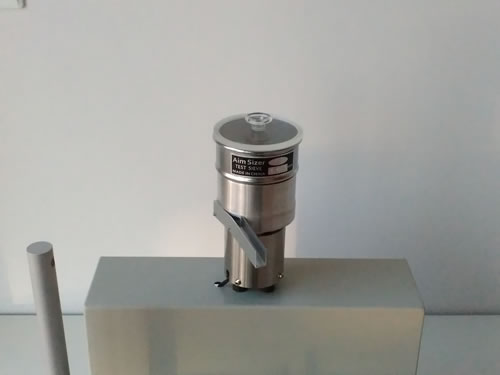

2017-06-17 rotary sample divider vibratory feeder

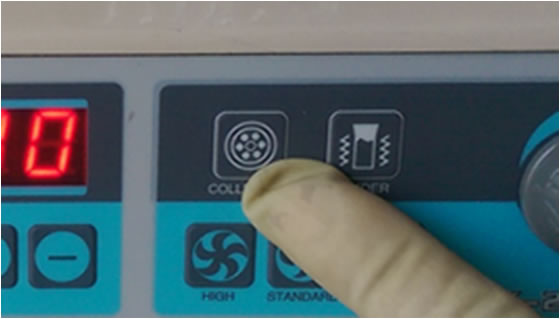

2017-04-25 hmk-2001 rotary sample divider panel – turn on collector

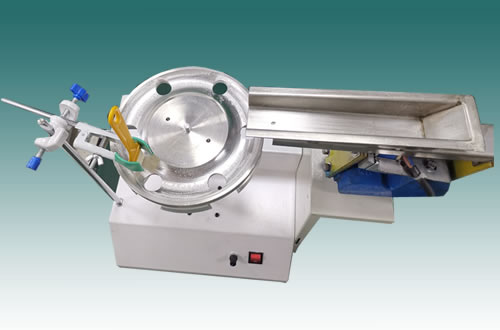

2016-06-01 old design hmk-2001 rotary sample divider

Specifications

• Maximum sub-sample amount: 0-300 cm³
• Single tube capacity: 0-50 mL
• Maximum sub-sample number: 6 shares (default to 6 shares)
• Maximum particle size: 3.5 mm
• Voltage: 110V 50 Hz or 220V 60 Hz
• Power: 10 W
• Net weight: 8.8 kg
• Maximum speed: 38 rpm
• Size: W22cm x H37cm x D26cm

Apparatus

Rotating sample divider consists of the following major parts: control panel, vibration feeder, sample receiver and sample cleaning device, etc. Control panel consists of vibration feeder panel and receiver sample panel. Vibration feeder panel consists of vibration feeder power switch and the vibrating feeder amplitude speed control knob. Sample receiver panel consists of power switch and high, medium and low key of rotation speed as well as stepless adjustable plus and minus key. Vibration feeder consists of vibrating base and sample pool. Sample receiver consists of composite funnel, tube clip, and six or eight tubes. The sample cleaning device consists of holder and cleaning brush.

Features

• Automatic sampling under the control of LED panel.
• Automatically adjust the amplitude of the vibrating feeder under the control of LED panel
• Automatically adjust the rotation speed of sample receiver under the control of LED panel
• Accurately dividing the existing samples through the automatically adjusting of the amplitude and the rotational speed.
